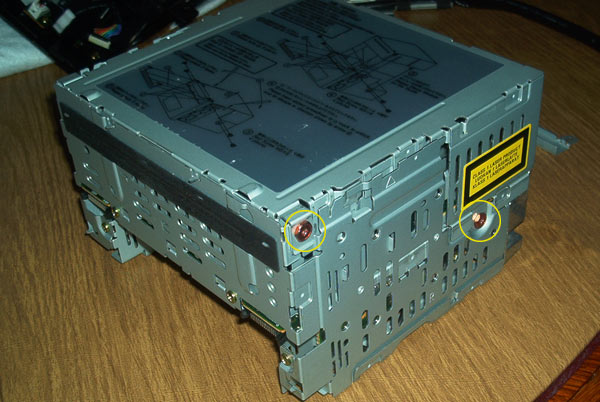

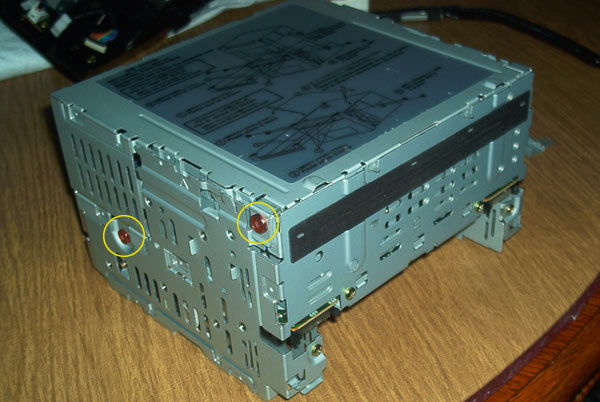

Remove the two screws on the right side of the core, then remove the same screws on the left side.

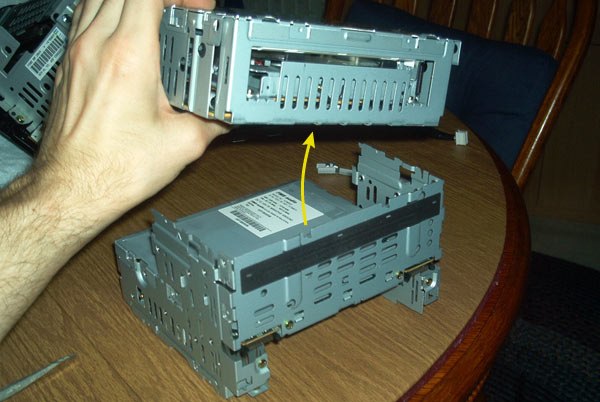

The CD Player module will lift out, you may have to pry it a bit. Set it aside, continue working with the base.
