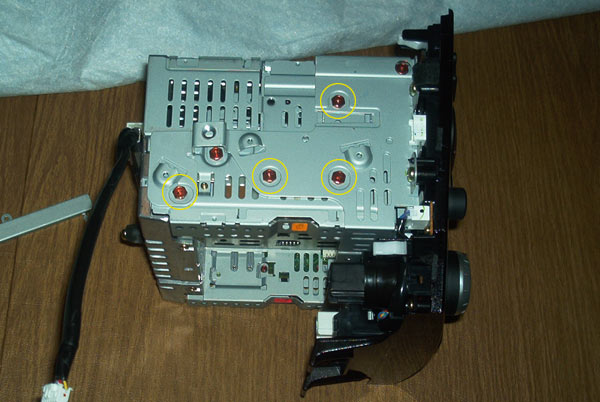

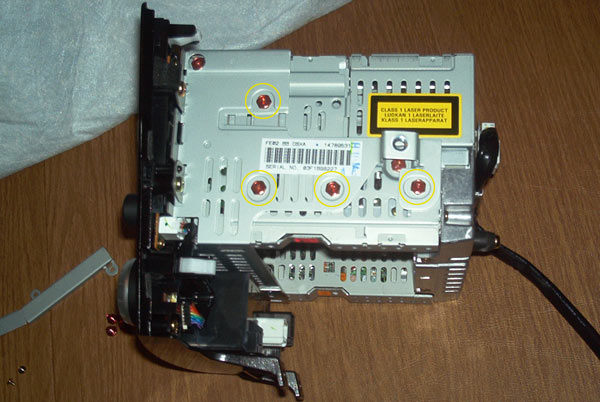

Remove four screws from the left side of the radio. Then turn it over and remove 4 from the other side.

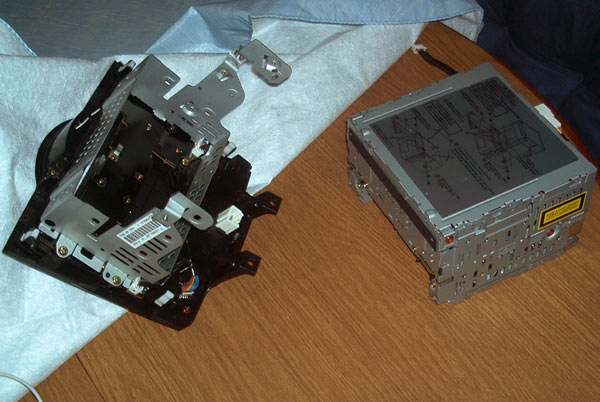

Now the core of the radio will slide right out of the face plate.
